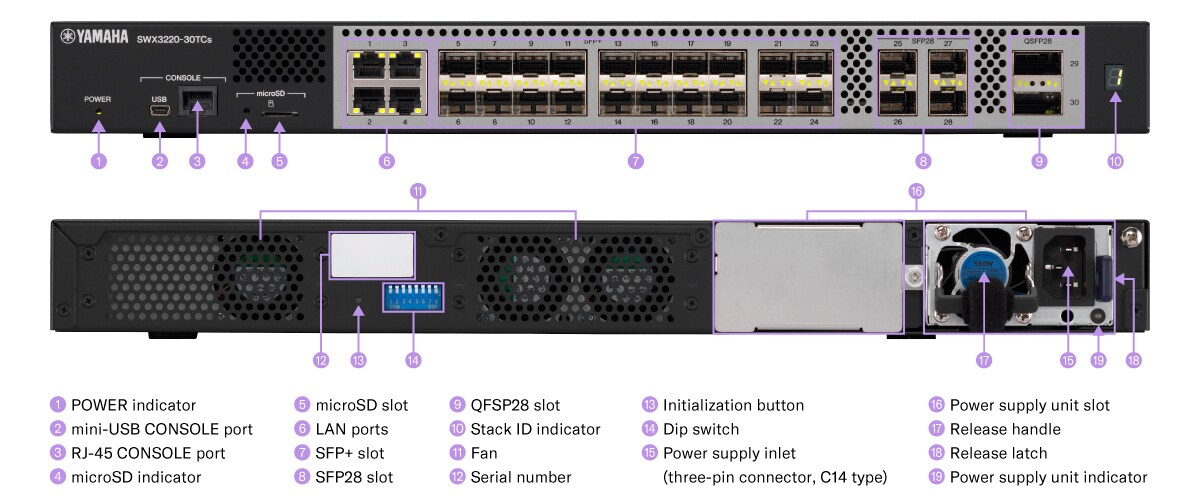

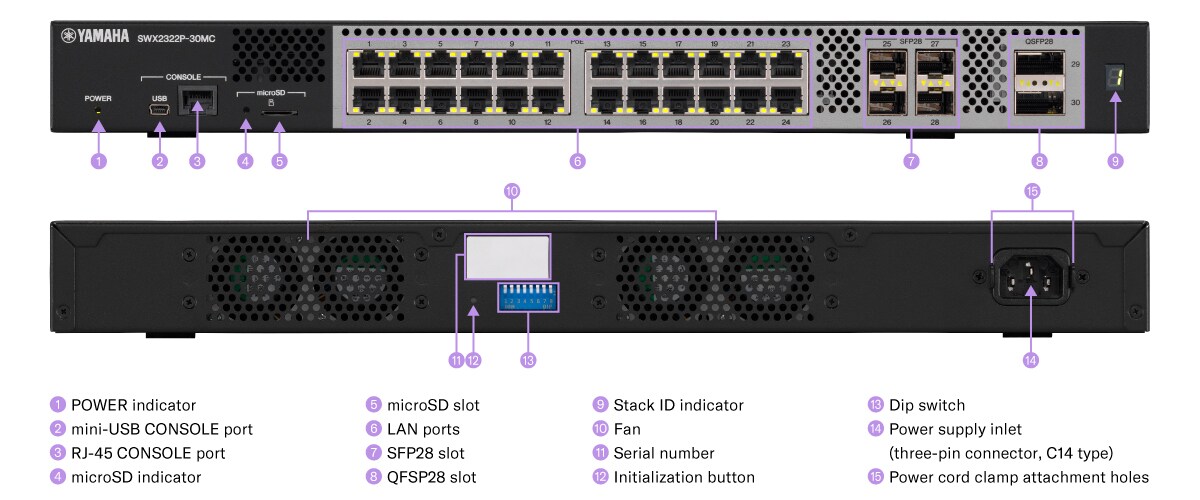

| General specifications | LAN ports | Standard | IEEE802.3 (10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX) | IEEE802.3 (10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX) |
|---|---|---|---|---|
| Number of ports | 4 | 24 | ||
| Communication mode | Auto negotiation | Auto negotiation | ||
| Connector type | RJ-45 | RJ-45 | ||
| Polarity | Automatic detection of straight/cross | Automatic detection of straight/cross | ||
| QSFP28 ports | Standard | IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436 | IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436 | |
| Number of ports | 2 | 2 | ||
| SFP28 ports | Standard | IEEE 802.3by, IEEE 802.3cc | IEEE 802.3by, IEEE 802.3cc | |
| Number of ports | 4 | 4 | ||
| SFP+ ports | Standard | IEEE 802.3ae (10GBASE-SR/10GBASE-LR), IEEE 802.3z (1000BASE-SX/1000BASE-LX) | - | |
| Number of ports | 20 | - | ||
| Console ports | Standard | RS-232C, USB 2.0 | RS-232C, USB 2.0 | |
| Connector type | RJ-45, mini-USB Type B (5-pin) | RJ-45, mini-USB Type B (5-pin) | ||
| Data transmission speed | 9,600 bit/s | 9,600 bit/s | ||
| Switching capacity | 1,080 Gbit/s | 1,080 Gbit/s | ||
| Throughput | 803.57 Mpps, Frame size 64 byte (Non-blocking) | 803.57 Mpps, Frame size 64 byte (Non-blocking) | ||
| Latency | 1.6μs/1.5μs/1.2μs/4.7μs/7.3μs/3.1μs/14.4μs (100G/25G/10G/5G/2.5G/1G/100M), Base on RFC2544 (Store & Forward, Frame size 64 byte) | 1.1μs/1.5μs/1.2μs/5.6μs/8.3μs/3.2μs/21.4μs (100G/25G/10G/5G/2.5G/1G/100M), Base on RFC2544 (Store & Forward, Frame size 64 byte) | ||
| Maximum number of MAC addresses | 65,536 | 65,536 | ||
| Link aggregation | Static setting, LACP (IEEE 802.1AX) | Static setting, LACP (IEEE 802.1AX) | ||
| VLAN | Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN, Voice VLAN, Multiple VLAN | Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN, Voice VLAN, Multiple VLAN | ||
| Maximum number of VLANs | 4094 (VLAN ID 1–4,094) *VLAN ID 1 is the default VLAN ID. | 4094 (VLAN ID 1–4,094) *VLAN ID 1 is the default VLAN ID. | ||
| Spanning tree | STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) *STP and RSTP are supported via downward compatibility with MSTP. | STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) *STP and RSTP are supported via downward compatibility with MSTP. | ||
| Loop detection | Yes | Yes | ||
| DHCP snooping | Yes | Yes | ||
| Static routing | Yes | Yes | ||
| Dynamic routing | BGP4+, OSPF (v2/v3), RIP (v1/v2), RIPng | - | ||
| Policy-based routing | Yes | - | ||
| IP multicast | IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2), IGMP (v2/v3), IGMP Proxy, IPv4 PIM-SM, PIM-DM, PIM-SSM | IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2) | ||
| ACL | IPv4 ACL, IPv6 ACL, MAC ACL | IPv4 ACL, IPv6 ACL, MAC ACL | ||
| QoS | Priority queuing (CoS, DSCP, Port priority, Policy-based), Bandwidth limiting/Bandwidth Guarantee, Scheduling (SP, WRR), Shaping | Priority queuing (CoS, DSCP, Port priority, Policy-based), Bandwidth limiting/Bandwidth Guarantee, Scheduling (SP, WRR), Shaping | ||
| Flow control | IEEE 802.3x (Full-duplex), back pressure (Half-duplex), HOL blocking prevention | IEEE 802.3x (Full-duplex), back pressure (Half-duplex), HOL blocking prevention | ||
| Storm control | Yes | Yes | ||
| Management protocols | SNMP (v1/v2c/v3/Private MIB), RMON (v1/v2), sFlow | SNMP (v1/v2c/v3/Private MIB), RMON (v1/v2), sFlow | ||
| Security and authentication | Port Authentication (IEEE 802.1X authentication, MAC address-based authentication), Web authentication, Dynamic VLAN, Port security, RADIUS server | Port Authentication (IEEE 802.1X authentication, MAC address-based authentication), Web authentication, Dynamic VLAN, Port security, RADIUS server | ||
| Program management | Update via TFTP/Web GUI, Update/Boot via microSD card | Update via TFTP/Web GUI, Update/Boot via microSD card | ||
| Logging | Store inside, Output as SYSLOG, Periodic Log Backup | Store inside, Output as SYSLOG, Periodic Log Backup | ||
| Log storage capacity | Up to 10,000 lines | Up to 10,000 lines | ||
| Support functions | Port mirroring, Port shutdown, Link speed downshift, Packet counter, Power saving mode (IEEE802.3az EEE), DHCPv4 (Server, Relay Agent, Client), DHCPv6 (Server, Client), IPv6 RA, Time management(Manual setting, SNTP), ProAV profile setting, Scheduling, System self-diagnostic, IEEE 1588 PTPv2 BC (Boundary Clock)(*), IEEE 1588 PTPv2 TC (Transparent Clock) (*), Cable diagnostics, endpoint monitoring, LLDP Auto configuration, Performance monitoring *Supports only 1 Gbit/s, 10 Gbit/s, 25 Gbit/s or 100 Gbit/s | Port mirroring, Port shutdown, Link speed downshift, Packet counter, Power saving mode (IEEE802.3az EEE), DHCPv4 client, DHCPv6 client, Time management (Manual setting, SNTP), ProAV profile setting, Scheduling, System self-diagnostic, IEEE 1588 PTPv2 TC (Transparent Clock) (*), Cable diagnostics, endpoint monitoring, LLDP Auto configuration, Performance monitoring *Supports only 1 Gbit/s, 10 Gbit/s, 25 Gbit/s or 100 Gbit/s | ||
| Stacking function | Yes (Up to 2 units) | Yes (Up to 2 units) | ||
| Configuration control | DIP switch ×8, Initialization button ×1 | DIP switch ×8, Initialization button ×1 | ||
| DIP switches | 8 | 8 | ||
| Configuration methods | Configuration via Web GUI, Configuration via Console/TELNET/SSH using CLI, Download/Upload via TFTP, Copy/Boot from microSD card, Automatic SD card boot | Configuration via Web GUI, Configuration via Console/TELNET/SSH using CLI, Download/Upload via TFTP, Copy/Boot from microSD card, Automatic SD card boot | ||
| Ports available for PoE power supply | - | 24 | ||
| PoE standards | - | IEEE 802.3bt type4 (class0–8) | ||
| Power supply system | - | Alternative A /Alternative B | ||
| Maximum power supply | Per port | - | 90 W | |
| All ports | - | 720 W | ||
| microSD slot | Standard | microSD/microSDHC (microSDXC is not supported) | microSD/microSDHC (microSDXC is not supported) | |
| Number of slots | 1 | 1 | ||
| File System | FAT/FAT32 | FAT/FAT32 | ||
| Indicators | POWER, microSD, LINK/ACT, SPEED, STACK ID | POWER, microSD, LINK/ACT, SPEED, STACK ID | ||
| Operating environment | Temperature 0–50°C, Humidity 15–80% (No condensation) | Temperature 0–50°C, Humidity 15–80% (No condensation) | ||
| Storage environment | Temperature -20–60°C, Humidity 10–90% (No condensation) | Temperature -20–60°C, Humidity 10–90% (No condensation) | ||
| Power supply (AC IN inlet) | AC100–240 V (50/60 Hz), Power supply unit slots (2 slots, 1 unit installed by default, Redundant), AC IN inlet | AC100–240 V (50/60 Hz), AC IN inlet | ||
| Maximum power consumption | 146 W (147 VA), 1.5 A, 524 kJ/h | 1100 W (1120 VA), 11 A, 3932 kJ/h | ||
| Chassis | Metal case, 3 fans | Metal case, 4 fans | ||
| EMI standard | VCCI Class A | VCCI Class A | ||
| Hazardous substances management | RoHS | RoHS | ||
| Dimensions | W | 430 mm | 430 mm | |
| H | 44 mm | 44 mm | ||
| D | 400 mm | 400 mm | ||
| Weight | 6.3 kg | 6.1 kg | ||
| Accessories | Power cord, power supply unit, power cord retainer, read this first, rubber feet, dust cover (set on SFP slots), slot cover (set on power supply unit slot), rack mount brackets, mounting screws | Power cord, power cord retention clip, read this first, rubber feet, dust cover (set on SFP slots), rack mount brackets, mounting screws | ||
| Options | SFP module, SFP+ module, SFP28 module, direct attach cable, active optical cable, power supply unit | SFP module, SFP+ module, SFP28 module, direct attach cable, active optical cable | ||
RJ-45/DB-9-consolekabel pinconfiguratie
Console (RS-232C)
*DSR- en CTS-signalen worden niet gebruikt door de SWX3220 / SWX2320-serie.
