An open architecture-type digital signal processor, which offers state-of-the-art performance and connectivity, 96 kHz sound quality and support for up to 256 input/output channels.
Functies
Networked, open-architecture digital signal processor with superior musical expression and sound field design
The DME7 is an open architecture-type digital signal processor that boasts superior processing capacity and supports up to 256 input/output channels. Featuring 96-kHz processing, the DME7 delivers the high-quality sound of Yamaha digital mixers. It is an outstanding processor for both musical expression and sound field generation, giving you the ideal sound whether you are using it for a theater, concert hall, or a wide range of other venues.
The DME7 hardware provides 64 channels of Dante I/O and matrix mixer as standard, which can be expanded by an additional 64 channels with a DEK-DME7-DX64 expansion kit license. Adding three licenses offers the ability for up to 256×256 channels of Dante I/O and matrix mixer to be handled by a single DME7, allowing you to use it with larger systems. The DME7 is also compatible with ProVisionaire, a software platform that provides full support for the design, control, and management of audio systems. Combining the DME7’s advanced signal processing capacity with ProVisionaire’s wide range of control options allows you to create more complex and flexible audio systems than ever before.
Superior processing performance
The DME7 is equipped with a wide range of DSP components that are an essential part of designing audio systems. These can be freely selected, connected, and configured, allowing for flexible system construction. Featuring 96-kHz processing, it delivers the high-quality sound of a digital mixer. The DME7 is an outstanding processor for both musical expression and sound field generation, giving you the ideal sound whether you are using it for a theater, concert hall, or a wide range of other venues.
Scalability – expandable I/O and processing capacity
The Dante I/O and matrix mixer channels of the DME7 can be expanded up to 256 channels in accordance with your needs. Purchase and activate a DEK-DME7-DX64 expansion kit license to use an additional 64 channels on the DME7. Add one license for 128 channels, two for 192 channels, and three for 256 channels of Dante I/O and matrix mixer.
*Licenses can be activated through ProVisionaire Cloud.
ProVisionaire Software Suite Supports the Entire DME7 Workflow
Wat is ProVisionaire?
ProVisionaire is een suite van softwaretoepassingen voor het ontwerpen, bedienen en beheren van geluidssystemen op basis van Yamaha Pro Audio-producten. De volledig aanpasbare ProVisionaire-software van Yamaha is geschikt voor zowel de entertainment- als de ProAV-markt en stelt gebruikers in staat om complexe, volledig schaalbare audiosystemen te creëren - van de kleinste tot de grootste - met behulp van slechts één softwarepakket. Bovendien kunnen ze heel eenvoudig door iedereen worden bediend - van de meest ervaren geluidstechnicus tot de meest onervaren gebruiker - met behulp van een tablet, laptop of desktopcomputer.
De ProVisionaire Design toepassing is ideaal voor het maken van DSP configuraties en het verfijnen van andere aspecten van het systeemontwerp. ProVisionaire Control PLUS biedt uitgebreide controle over volledige systemen van tablets en andere externe apparaten. ProVisionaire Cloud maakt efficiënt beheer van Yamaha-apparaatlicenties mogelijk.
-
ProVisionaire Design
- Flexible and intuitive system configuration
- Includes a variety of audio components for intended sound design
- Versatile logic control setup
- Probe monitoring
-
ProVisionaire Control PLUS
- Volledige systeemcontrole door toewijzing van noodzakelijke parameters van ondersteunde apparaten
- Maak een op maat gemaakt configuratiescherm afhankelijk van de behoeften
- Parameters slepen en neerzetten vanuit ProVisionaire Design
- Windows en iPad/iPhone ondersteuning
-
ProVisionaire Cloud
- Flexible license management
- License activation/deactivation
ProVisionaire Cloud is being introduced in stages. Please contact your local Yamaha subsidiary to confirm if it is available in your region.
DME7 Features
User Interfaces and Connectors

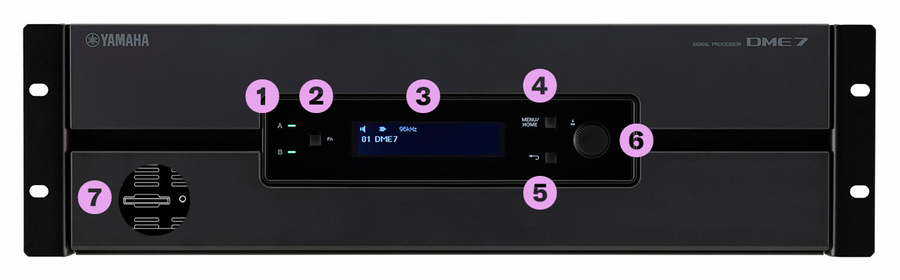

1. [A]/[B] indicators for AC IN jacks
2. [Fn] button
3. Display
4. [MENU/HOME] button
5. Back button
6. Main knob
7. SD memory card slot

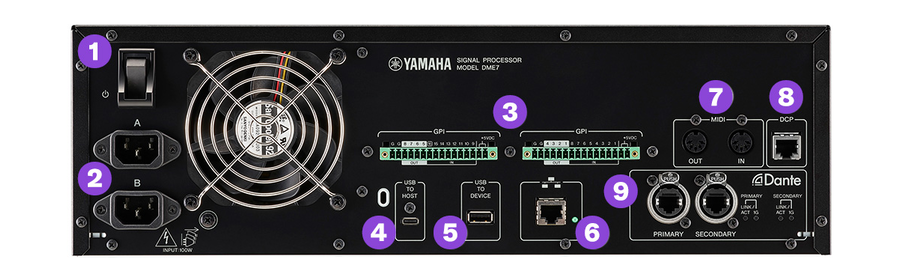

1. Power switch
2. AC IN (power inlet) jacks [A]/[B]
3. [GPI] ports
4. [USB TO HOST] port
5. [USB TO DEVICE] port
6. Network port
7. [MIDI] ports
8. [DCP] port
9. [PRIMARY]/[SECONDARY] Dante ports
Flexible Control
In addition to basic AND/OR logic components, the DME7 is equipped with a wide range of control components such as compare and delay. Combining these features with faders and buttons allows for flexible and complex control of audio equipment. The DME7 also offers extensive, flexible controllability. It can be controlled from ProVisionaire Control and supports control protocols like DCP (Digital Control Panel), GPI, MIDI, and OSC.
USB Audio Interface
The type-C USB to host port on the rear of the product functions as a 96-kHz-compatible 8-channel audio interface. You can use it as an audio input to check your audio system via computer or other device, or to audition internal configurations.
SD memory card slot
The SD card slot on the front panel allows you to transfer project files and save and export device log files. You can also play MP3 and WAV files stored on the card, and use it to play prerecorded announcements or chimes.
Informative LCD display
The LCD display on the front panel provides access to a variety of information. Detailed error logs and other details can be displayed, and QR code links to manuals are also displayed, making it easy to monitor and troubleshoot a situation.
Super Quiet - NC 20
Low noise design that does not disturb performance.
It can be placed within audiences as well as in the equipment room.
ProVisionaire Design Features
Integrated design software for variety of Yamaha audio equipment
ProVisionaire Design is a software application for Windows operating systems that allows comprehensive, intuitive design of sound systems that use compatible Yamaha products. It is compatible with a wide range of Yamaha products including the DME7/MRX7-D*/MTX processors, XMV/PC‐D amplifiers, Rio/Tio interfaces, VXL-P speakers, ADECIA solutions, and more.
ProVisionaire Design facilitates sound system design and setup by allowing flexible component layout, signal routing, and parameter editing in open-architecture processors such as the DME7 and MRX7-D. It also provides a comprehensive overview of components and signal routing in MTX series fixed-architecture processors. A wide range of high-quality audio components that only a leader in the field of professional sound reproduction can provide is supported including REV-X for refined reverb, and the Dugan Auto Mixer for flawless automated mixing. It also supports logic components that can be used to create control sequences. ProVisionaire Design can be used in conjunction with the ProVisionaire Control computer applications for comprehensive control of any project, from system design and setup to everyday operation and management. Editor widgets can be dragged and dropped into ProVisionaire Control, allowing parameters to be easily assigned to the ProVisionaire Control KIOSK and ProVisionaire Touch KIOSK applications as well.
*MRX7-D support scheduled for fall of 2023.
Flexible System Design

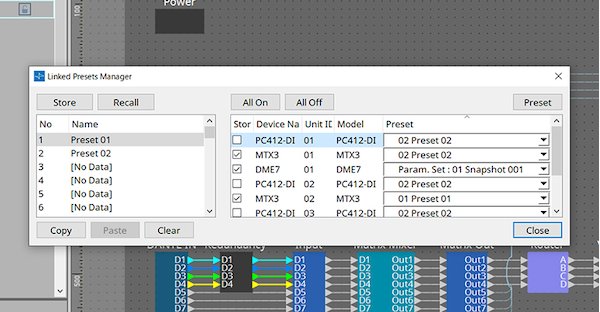

Flexible Presets
Presets can be created for linked/grouped devices in addition to individual devices, providing broader flexibility when setting up presets for different applications.

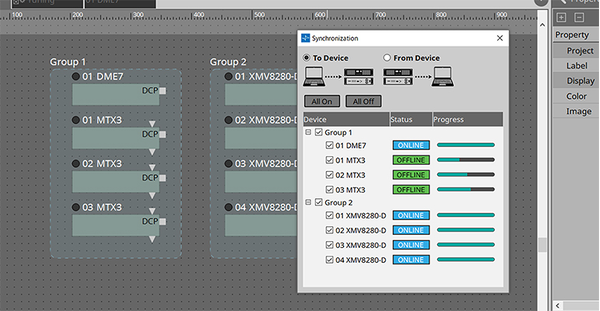

Device Grouping Enhances Setup and Operation Efficiency
Devices can be assigned to groups, allowing various types of control to be applied to the group as a whole. For example, preset recall, overall mute, synchronization, and more can be assigned to entire groups for efficient operation and management.

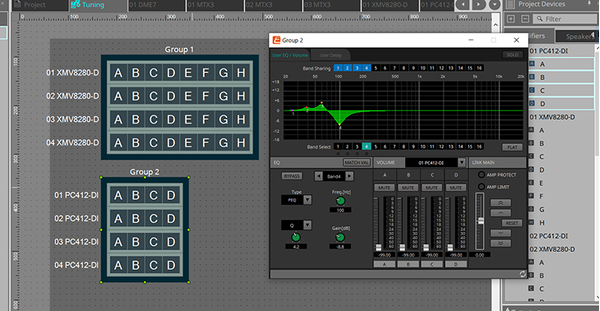

Fine Tuning and Efficient Workflow
ProVisionaire Design is a powerful tool for sound engineers and systems integrators. Not only does it allow detailed control of a comprehensive range of amplifier and speaker parameters, but individual channels can be linked/grouped as required, and related EQ, delay, and other parameters can be linked as well. All of this can contribute to efficient design and setup of finely tuned systems.
Flexible Audio/Control configuration
Audio configuration
ProVisionaire Design supports high-performance audio and live performance system design for a large number of audio components. In systems based around the DME7 or MRX7-D, it allows the device’s components to be freely and flexibly laid out, and internal parameters to be easily adjusted to achieve the required sonic results. Available components range from basic essentials such as Combiner, Delay, Dynamics, Effect, EQ, Filter, Meter, Matrix Mixer, Router, Source Selector, and Speaker Processor to more high-level functions such as Comp260, DCA, Dugan Automixer, REV-X and more.
-
Dugan Automixer
-
Delay Matrix
-
Room Combiner
-
AEC
-
Ducker
-
EQ
-
Rev-X
-
Comp260
-
DCA
Control configuration
By using control components, you can recall parameters in sequence based on simple logic principles governed by statements such as AND, OR, COMPARE. It can be used to describe a wide range of complex relationships in a process by wiring control component and audio component. The logic function enables more complex control designs that go beyond just GPI control, allowing us to meet the detailed requirements of our users.
-
Button
-
Fader
-
Logic
-
Compare
-
Max/Min
-
Delay
-
Router
-
GPI In
-
GPI Out
Preparation

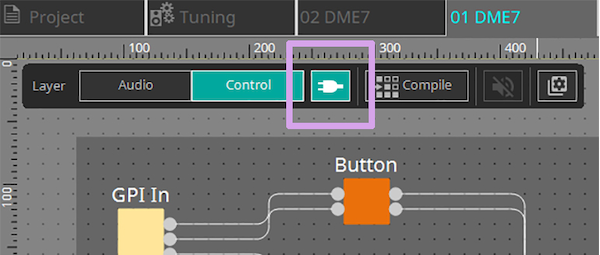

Offline Simulation
- Audio routing for logic control setups created offline can be checked and tested without the need to actually have any devices connected.

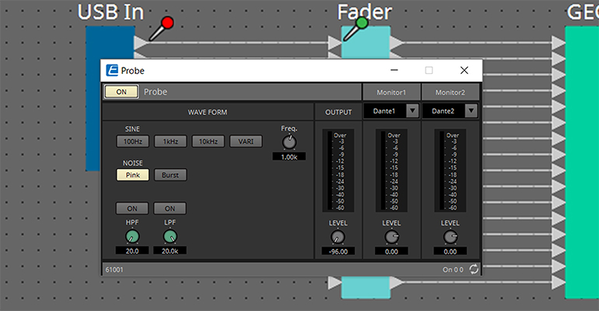

Probe Monitoring
- Two probe monitoring points can be defined.
- The signals from the two probe monitor points can be assigned to different output channels and monitored independently.
- Advanced applications of two probe monitor points to check the correlation between the processor input signal and direct microphone signal.

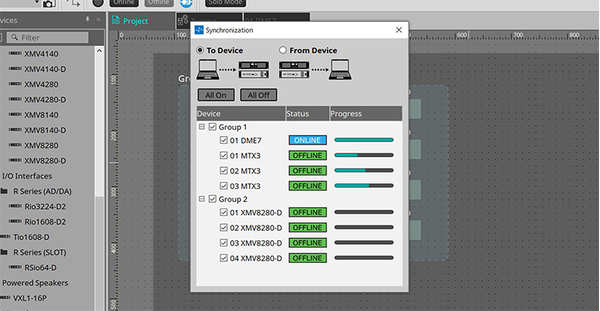

Synchronization
- After offline checks have been carried out using the Offline Simulation and Probe Monitoring functions described above, all that remains to be done to complete the setup is to load the data into the device, significantly reducing setup time.
- The entire system can be placed online at once, or devices can be placed online individually and tested one at a time.
Opties
DEK-DME7-DX64Expansion license
This is an expansion license kit that adds 64 channels of Dante I/O and matrix mixer to the DME7. Up to three licenses can be added to a single DME7. Licenses can be activated through ProVisionaire Cloud.
DEK-AFC-I
Licentie uitbreiding
Dit is een licentie-uitbreidingskit die ingangs-/uitgangskanalen van AFC Image objectgebaseerd mixen toevoegt aan de DME7. Er kunnen maximaal twee licenties worden toegevoegd aan één enkele DME7. Licenties kunnen geactiveerd worden via ProVisionaire Cloud.
DCP1V4SDigitaal bedieningspaneel
Een met 1 volumeregelaar en 4 schakelaars uitgerust bedieningspaneel voor wandmontage voor de MTX/MRX-serie en de MA/PA-serie. Eenvoudige aansluiting door CAT5 met RS485 + voeding. Er kunnen maximaal 8 DCP's op 1 apparaat van de MTX/MRX-serie worden aangesloten. Er kan 1 DCP1V4S op 1 MA2030a/MA2030 worden aangesloten. Er kunnen maximaal 2 DCP's op 1 MA2120 of PA2120 worden aangesloten.
DCP4SDigital Control Panel
4 Switch equipped Wall Mounut Control panel for MTX SeriesEasy connection by CAT5 carrying RS485 + powerMaximum 8 DCPs can be connected to 1 MTX Series
DCP4V4SDigitaal bedieningspaneel
Een met 4 volumeregelaars en 4 schakelaars uitgerust bedieningspaneel voor wandmontage voor de MTX/MRX-serie en de MA/PA-serie. Eenvoudige aansluiting door CAT5 met RS485 + voeding. Er kunnen maximaal 8 DCP's op 1 apparaat van de MTX/MRX-serie worden aangesloten. Er kunnen maximaal 2 DCP's op 1 MA2120 of PA2120 worden aangesloten.
DCH8Digital Controller Hub
Divides the control line from host devices such as the Yamaha MTX/MRX series into up to 8 lines.
