| General Specifications | General | Construction | Bolt-on (6-bolt miter neck joint) |
|---|---|---|---|
| Scale Length | 34" (863.6 mm) | ||
| Body | Body Materials | Alder / Maple / Alder construction | |
| Body Finish | Gloss Polyurethane | ||
| Neck | Neck Materials | Maple / Mahogany 5pcs | |
| Neck Finish | Satin Polyurethane | ||
| Fingerboard Materials | Rosewood | ||
| Fingerboard Radius | 10" (250 mm) | ||
| Fret wire | Medium | ||
| Number of frets | 21 | ||
| Nut materials | Graphtech | ||
| Width @ 0 Fret / 12th Fret | 40.0 / 56.3 mm | ||
| Thickness @ 1st Fret / 12th Fret | 21.0 / 23.0 mm | ||
| Electronics | Neck Pickup | Reversed VSP7n : Split Single Coil / Alnico V | |
| Middle Pickup | - | ||
| Bridge Pickup | - | ||

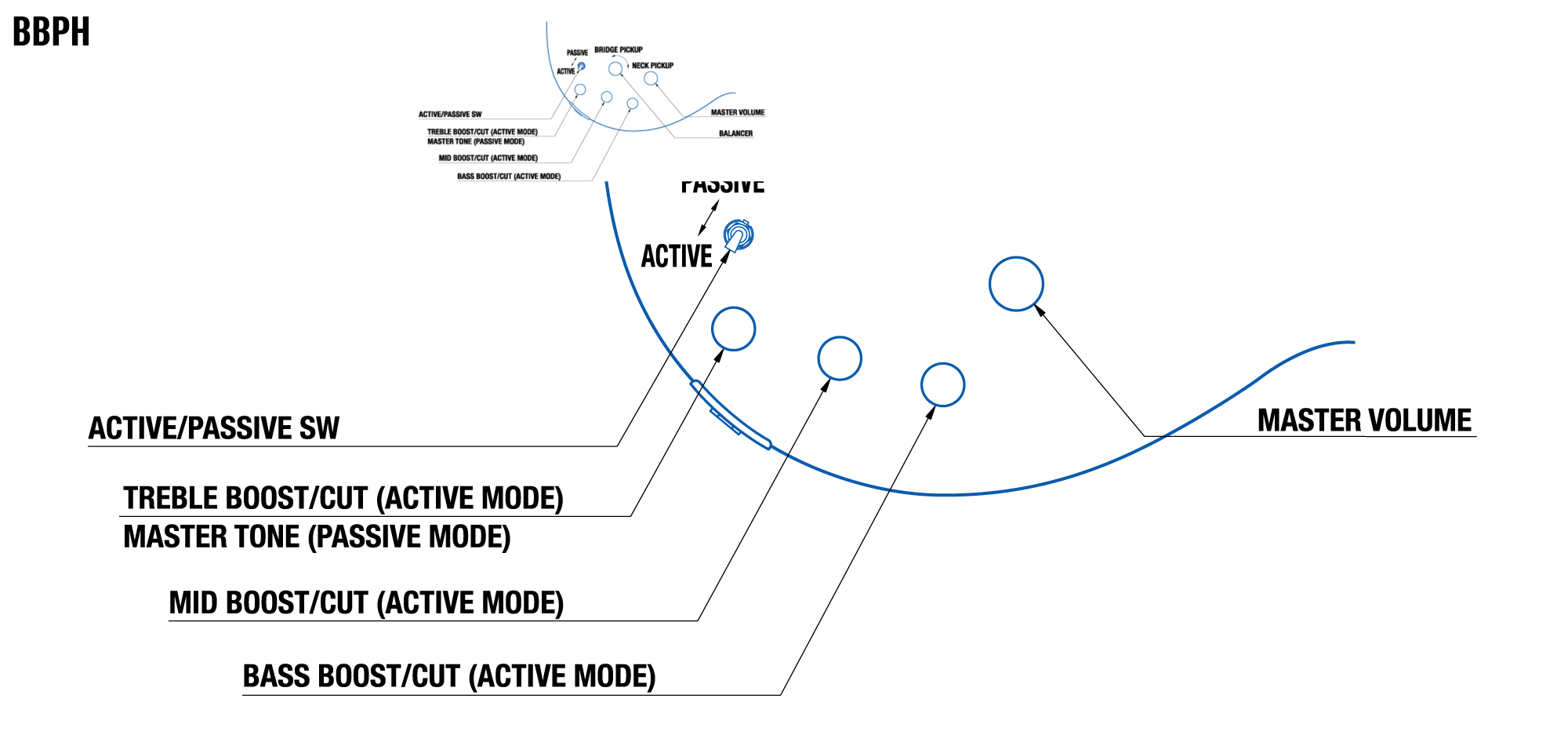

| Controls | Master Volume, 3-BAND EQ (Bass, Middle, Treble), Active / Passive Switch. | ||
| Pickup Switch | - | ||
| Hardware | Bridge | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | |
| String spacing | 19 mm | ||
| Tailpiece | - | ||
| Tuning Machines | Lightweight Open Gear | ||
| Pickguard | - | ||
| Others | String gauge | D'Addario EXL-170 / 0.045-0.100 | |
| Case | Gig bag | ||
| Special Features | - |
*Long-scale strings are recommended when stringing through the bridge and super long-scale strings are recommended when stringing through the body.
