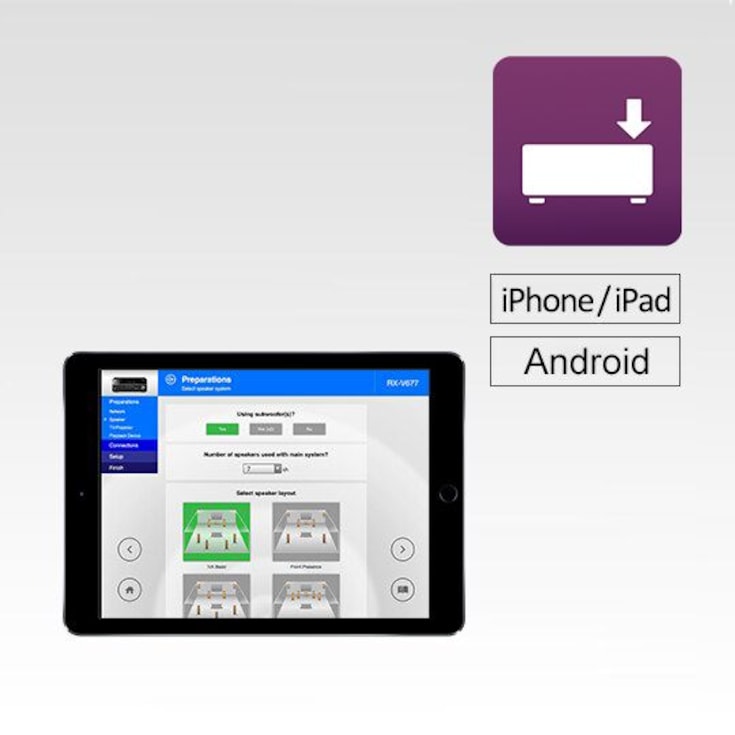

AV SETUP GUIDE
Yamaha AV Receiver-app voor installatie
AV SETUP GUIDE is een app die je helpt bij de kabelaansluitingen tussen de AV-receiver en bronapparaten, en bij het instellen van de AV-receiver.
De app helpt je bij diverse instellingen, bijvoorbeeld voor je luidsprekers, tv en bronapparaten, en het toewijzen van de versterker.
Aan de hand van illustraties en foto's van de AV-receiver wordt duidelijk uitgelegd hoe je verbindingen tussen apparaten instelt.
Als je receiver op een netwerk kan worden aangesloten, worden de parameters die je via deze app instelt automatisch naar je AV-receiver gekopieerd om het instellen te vereenvoudigen.
Product Informatie
AV SETUP GUIDE
Yamaha AV Receiver app voor installatie
Wide Range of Functions
AV Receiver Model Select
Select your model
Home Menu
Your model is displayed.
Start connection guide or view owner's manual.
Speaker Layout
Based on your selected speaker confiuration for the room, this app shows you all the possible speaker layout avaialble to select.
Source Device Select
Select all connecting devices from the list.Check input/output terminals on these devices.
Confirmation of TV/source devices and cables
Based on Source Device Select result, this app shows you all necessary interconnection cables.
TV / Source Devices Connection
Based on your selection of input/output on connected devices, this app shows you to which input / output terminals on the receiver these devices need to be connected.
Speaker Connection
Based on your selected speaker layout in earlier step, this app shows you to which speaker terminals the speakers need to be connected.
Automatic Setup via Network
Setting parameters in this app will be automatically copied to your AV receiver.
*This function is supported only by network capable models.
YPAO Setting Guidance
YPAO automatically optimize the speaker settings to suit your room.
This app guides you how to engage YPAO and checks if the speaker connection is correct.
*Certain models will skip this step.
Compatible Models
CX-A5100, CX-A5000
RX-V3060, RX-V2060, RX-A1060, RX-A860, RX-A760, RX-A660, RX-A3050, RX-A2050, RX-A1050, RX-A850, RX-A750, RX-A550, RX-AS710, RX-AS710D, RX-A3040, RX-A2040, RX-A1040, RX-A840, RX-A740
RX-V3081, RX-V2081, RX-V1081, RX-V781, RX-V681, RX-V581, RX-V481, RX-V481D, RX-V381, RX-V3079, RX-V2079, RX-V1079, RX-V779, RX-V679, RX-V579, RX-V479, RX-V379, RX-V3077, RX-V2077, RX-V1077, RX-V777, RX-V677, RX-V577, RX-V477, RX-V377
*Some models are not available in some regions.
System Requirements
OS: iOS 6.0, Android OS 4.00 or higher
Screen Size: 7" or higher
Screen Resolution: 1024x768 or higher
* Compatibility with certain tablet devices can't always be guaranteed.
Privacy Policy
* This application will never collect nor externally transfer personal data stored in your smartphone / tablet.
* This application performs following functions for purposes described below.
Making a connection under WiFi-enabled environment
The application uses WiFi function on your mobile terminal for the purpose of operating network-enabled devices.
Accessing to music information stored in your smartphone / tablet
This application accesses to music information stored in your smartphone / tablet for the purpose of displaying, playing and editing the music information and/or playlist.
