A Compact, Convenient Approach to High Quality Monitoring

10-cm full-range speaker with 10 watts output. Three inputs: mic × 1 (phone), line × 2 (phone & RCA pin). Tone control (high/low). Line output allows addition of an external speaker. Options for stand or wall mounting (sold separately).

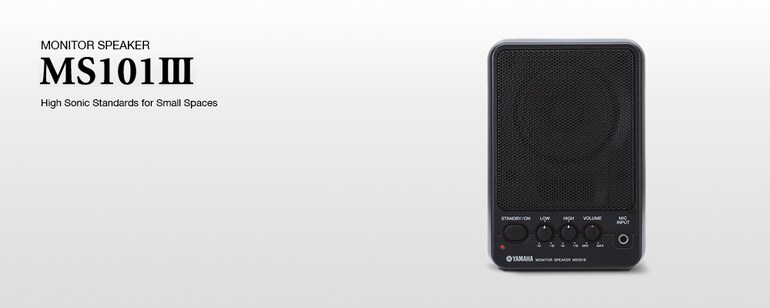

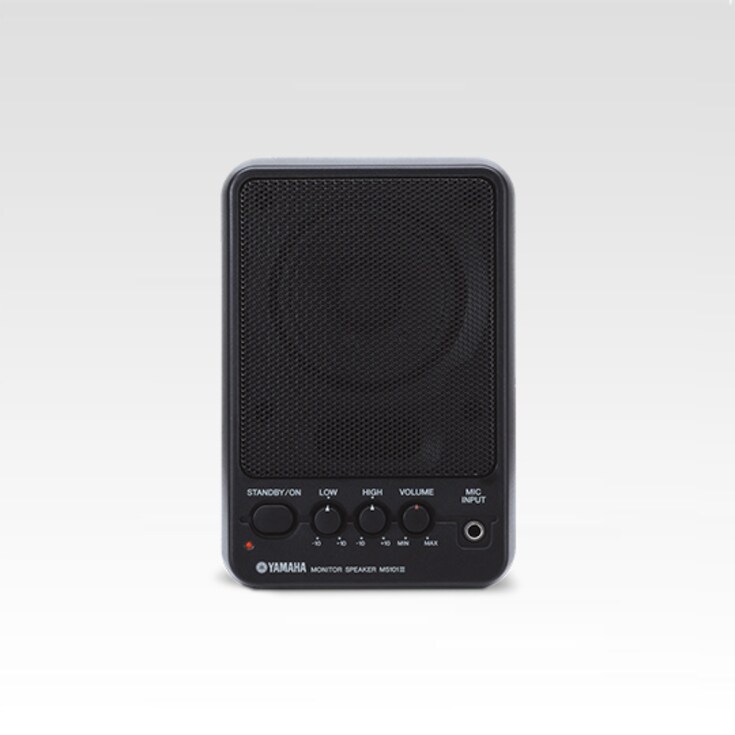

MS101III Monitor Speaker Niet meer leverbaar

The "standard" desktop monitor.

BWS20-120

Wall Mounting brackets

  • Net weight: 0.6kg; 1.3lbs
  • Load capability: 7kg; 15.4lbs
  • Applicable for: VXS5, S55, S15, HS5I, MSP3A, MSP3, MS101-4, MS101III

BWS20-190

Wall Mounting brackets

  • Net weight: 0.85kg; 1.9lbs
  • Load capability: 7kg; 15.4lbs
  • Applicable for: VXS5, S55, S15, HS5I, MSP3A, MSP3, MS101-4, MS101III

BCS20-150 Niet meer leverbaar

Ceiling Bracket

  • Net weight: 0.9kg; 2lbs
  • Load capability: 10kg; 22.1lbs
  • Applicable for: VXS8, VXS5, S55, S15, HS5I, MSP5 STUDIO, MSP3A, MSP3, MS101-4, MS101III

BCS20-210 Niet meer leverbaar

Ceiling Bracket

  • Net weight: 1.0kg; 2.2lbs
  • Load capability: 10kg; 22.1lbs
  • Applicable for: VXS8, VXS5, S55, S15, HS5I, MSP5 STUDIO, MSP3A, MSP3, MS101-4, MS101III

BMS-10A Mic Stand Adaptor

  • Net weight: 0.24kg; 0.5lbs / Load capability: 5kg; 11.0lbs
  • Applicable for: MG10XU, MG10X, MG10, MG06X, MG06, AG06, AG03, EMX2, S15, MSP3A, MSP3, MS101-4, MS101III, STAGEPAS 600i, STAGEPAS 400i, STAGEPAS 600BT, STAGEPAS 400BT

BAS-10

Free-Angle Clamp

MS101III
Speaker type Powered speaker
Frequency range (-10dB) 75Hz-18kHz
Output power 10W
I/O connectors Mic: -45dB/Phone, Line 1: -10dB/RCA Pin, Line 2: -10dB/Phone
Power consumption 30W
Dimensions W 147mm; 5-3/4in
H 214mm; 8-3/8in
D 192mm; 7-1/2in
Net weight 2.5kg; 5.5lbs

The colors and finishes shown may vary from those on the actual products.
